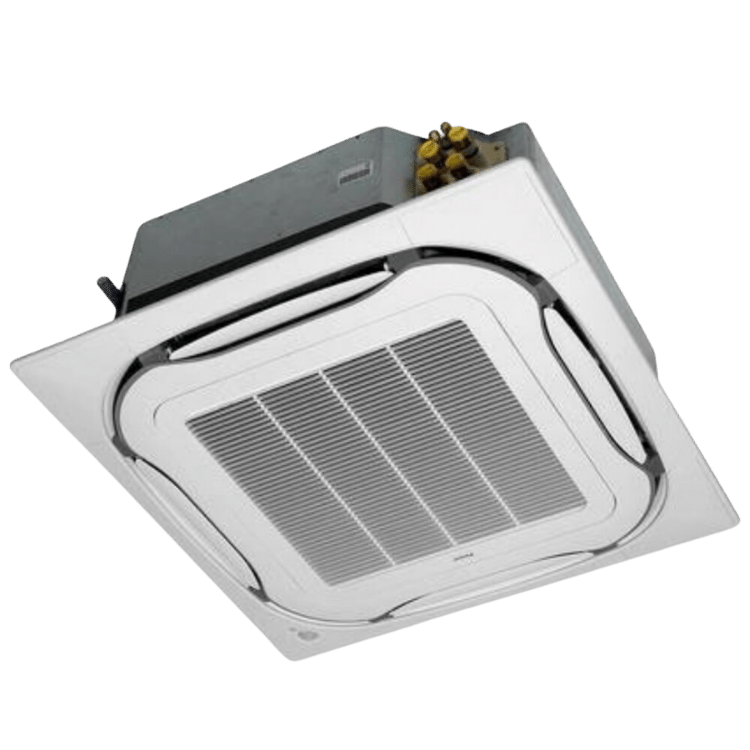

DAIKIN FCVF125ARV169 3.5 TON INVERTER 4 STAR CASSETTE AIR CONDITIONER

DAIKIN FCVF125ARV169 3.5 TON INVERTER 4 STAR CASSETTE AIR CONDITIONER

  • Capacity : 3.5 Ton
  • ISEER Rank / ISEER : Inverter 4 Star / 3.85
  • Cooling Capacity (Btu/h) : 42,651 (19,449 ~ 47,769)
  • Power consumption(Cool) (W) : 4,450<
  • Electricity Consumed in 1600 Hours (Units/Year) : 2,513.48

Description

Key Features

  • Individual Air Flow Control
  • Fresh air intake kit
  • Silver Ion Antibacterial Drain Pan
  • Night Quiet Operation
  • Swing Pattern Selection
  • Drain Pump Mechanism
  • Low gas pressure detection
  • 360° Airflow

Technical/Functional Specification

Series FCVF Series
Indoor Model No FCVF125ARV169
Outdoor Model No RZVF125BRV169
Power supply intake Outdoor unit
Cooling Capacity Rated Full/Half (min ~ max) kW 12.5 (5.7 ~ 14.0)
Cooling Capacity Rated Full/Half (min ~ max) Btu/h 42,651 (19,449 ~ 47,769)
Power consumption (Cooling) Rated Full/Half (min~max) W 4,450
Annual Power Consumption kWh 2,513.48
ISEER / ISEER Rank 3.85 / Inverter 4 Star
Power Supply Ph, V, Hz 1 , 230, 50
Modes Cool Mode, Fan Mode, Dry Mode
Timer ON Timer can be set from 1 hour to 12 hours
OFF Timer can be set from 1 hour to 9 hours
Auto Restart Yes

Indoor Unit

Front Panel Colour Ivory White
Indoor Dimensions (H x W x D) 298 x 840 x 840
Indoor Panel Dimensions (H x W x D) 50 x 950 x 950
Indoor Machine Weight (Kg) 22
Indoor Panel Weight (Kg) 5.5
Airflow rate (H / HM / M / ML / L) m³/min (Cfm) 36.5 / 33 / 29 / 25 / 21
Airflow rate (H / HM / M / ML / L) f³/min (Cfm) 1,288 /1,165 / 1,024 / 883 / 742
Sound Levels (H / MH / M / ML / L / SL) 46 / 43 / 40 / 36 / 32.5

Outdoor Unit

Casing Colour Ivory White
Compressor Type Hermetically Sealed Swing Type
Compressor Motor Output kW 2.4
Dimensions (H x W x D) mm 990 x 940 x 320
Machine Weight (Kg) 69
Max. interunit piping length (m) 50
Max. installation level difference (m) 30
Piping Connection (Gas/Liquid) mm (inch) ∅15.88/∅9.52 (5/8″ ; 3/8″)
Operating Ambient Temperature Range Cooling (Min ~ Max) °CDB 21° ~ 52°

Installation & Service Warranty

Installation Details Installation Charges: Rs. 4,000; Outdoor Stand (L-Brackets): Rs. 1,250

Installation will be done in 2 – 3 days from the date of purchase.

Part of the Standard Installation of AC Covers only

Split AC:-

  • Drilling of hole in Brick wall for taking out the pipes.
    Fixing hole sleeve & Cap.
  • Fixing the Indoor and Outdoor Unit.
  • Connecting Indoor and Outdoor units using Standard Kit
    provided by Manufacturer (at an additional cost, unless specified otherwise).
  • Wrapping the pipe with seasoning tape. Connection to
    Stabilizer or Power point in the range of Power Cord Provided by Manufacture.
  • Temperature/Performance Check & Demo and Maintenance tips
    filling the details in warranty card.

Not covered part of the Installation:-

  • If Copper Piping, Drain Pipe, Electrical Cable or AC Plug Top
    consumes extra, we charge separately.
  • Plumbing and Masonry Work. Wiring extension from Meter to
    site, Power point/MCB fitting and any other electrical work,Carpentry work.
  • Dismantling/Shifting of Old AC’s Masonry, Core Cutting
    Fabrication and Electrical.
Service Details 2 Free Services of AC within 1 Year from the date of Installation.
Warranty Details DAIKIN AC would be covered under warranty if customer purchase a product through an
Authorized DAIKIN Airconditioner Dealer Only.
The Daikin Split Air conditioner (hereinafter referred to as “Product”) High wall non-inverter comes
with 1 Year (12 months) warranty from the date of Installation or 15 months warranty from the date of
Invoice / dispatch, whichever is earlier (“Initial Warranty Period”) on all parts except front grill
& plastic parts and, thereafter 2 years additional warranty (**) on the compressor.
