DAIKIN FKCA71AV16 2.0 TON INVERTER 3 STAR 1 WAY CASSETTE AIR CONDITIONER

DAIKIN FKCA71AV16 2.0 TON INVERTER 3 STAR 1 WAY CASSETTE AIR CONDITIONER

Capacity : 2.0 Ton

ISEER Rank / ISEER : Inverter 3 Star / 4.35

Cooling Capacity (Btu/h) : 24,226 / 11,942 (8,530 ~ 25,591)

Power consumption(Cool) (W) : 2,235

Electricity Consumed in 1600 Hours (Units/Year) : 1,264

+918838933408

+919629168383

Description

Key Features Daikin FKCA71AV16 2.0 Ton Inverter 3 Star 1 Way Cassette
Airconditioners

Compact & Elegant Design Indoor Unit
Low Ceiling Height Indoor Unit
Swing Pattern Selection
5 Step Fan Speed

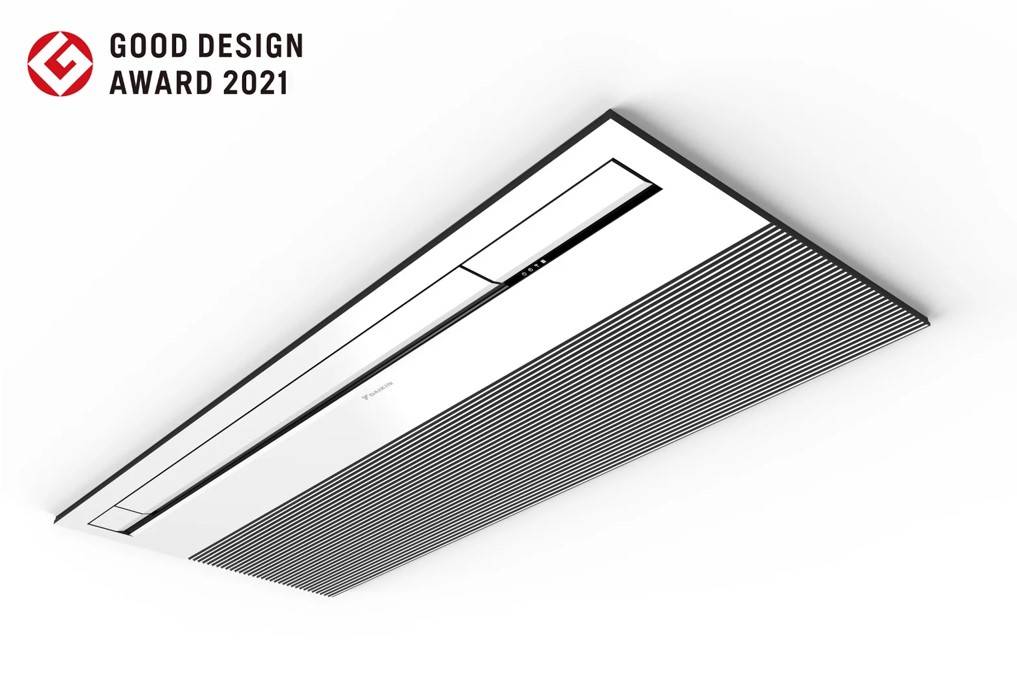

Good Design Award 2021
Weekly Schedule Timer
Cools at Extreme Temperature 52°C
24° C Default Temperature Setting

Technical/Functional Specification

Series FKCA Series
Indoor Model No FKCA71AV16
Outdoor Model No RZVF71BRV16
Power supply intake Outdoor unit
Cooling Capacity Rated Full/Half (min ~ max) kW 7.1 / 3.5 (2.5 ~ 7.5)
Cooling Capacity Rated Full/Half (min ~ max) Btu/h 24,226 / 11,942 (8,530 ~ 25,591)
Power consumption (Cooling) Rated Full/Half (min~max) W 2,235
Annual Power Consumption kWh 1,264
ISEER / ISEER Rank 4.35 / Inverter 3 Star
Power Supply Ph, V, Hz 1 Ph , 230, 50
Modes Cool Mode, Fan Mode, Dry Mode
Timer ON Timer can be set from 1 hour to 12 hours
OFF Timer can be set from 1 hour to 9 hours
Auto Restart Yes

Indoor Unit

<tr”>Sound Levels (H / M / L)
47 / 45 / 43

Front Panel Colour White
Indoor Dimensions (H x W x D) 140 x 1200 x 515
Indoor Panel Dimensions (H x W x D) 41 x 1390 x 595
Indoor Machine Weight (Kg) 24
Indoor Panel Weight (Kg) 6.6
Indoor Panel Color Surface Color: White & Base Color: White
Surface Color; Silver & Base Color; Silver
Airflow rate (H / M / L) m³/min (Cfm) 19 / 16 / 13
Airflow rate (H / M / L) f³/min (Cfm) 671 / 565 / 459

Outdoor Unit

Casing Colour Ivory White
Compressor Type Rotary
Refrigerant R-32
Refrigerant charge R-32 1.30
Dimensions (HxWxD) mm 595 x 845 x 300
Machine Weight (Kg) 40
ODU Sound Level dB(A) 50
Max. interunit piping length (m) 30
Max. installation level difference (m) 20
Piping Connection (Gas/Liquid) mm (inch) ∅15.5/∅9.5 (5/8″ ; 3/8″)
Operating Ambient Temperature Range Cooling (Min ~ Max) °CDB 21° ~ 52°

Installation & Service Warranty

Installation Details Installation Charges: Rs. 2,500; Outdoor Stand (L-Brackets): Rs. 750

Installation will be done in 2 – 3 days from the date of purchase.

Part of the Standard Installation of AC Covers only

Split AC:-

  • Drilling of hole in Brick wall for taking out the pipes. Fixing hole sleeve & Cap.
  • Fixing the Indoor and Outdoor Unit.
  • Connecting Indoor and Outdoor units using Standard Kit provided by Manufacturer (at an
    additional cost, unless specified otherwise).
  • Wrapping the pipe with seasoning tape. Connection to Stabilizer or Power point in the range of
    Power Cord Provided by Manufacture.
  • Temperature/Performance Check & Demo and Maintenance tips filling the details in warranty
    card.

Not covered part of the Installation:-

  • If Copper Piping, Drain Pipe, Electrical Cable or AC Plug Top consumes extra, we charge
    separately.
  • Plumbing and Masonry Work. Wiring extension from Meter to site, Power point/MCB fitting and any
    other electrical work,Carpentry work.
  • Dismantling/Shifting of Old AC’s Masonry, Core Cutting Fabrication and Electrical.
Service Details 2 Free Services of AC within 1 Year from the date of Installation.
Warranty Details DAIKIN AC would be covered under warranty if customer purchase a product through an
Authorized DAIKIN Airconditioner Dealer Only.
The Daikin Split Air conditioner (hereinafter referred to as “Product”) High wall non-inverter comes
with 1 Year (12 months) warranty from the date of Installation or 15 months warranty from the date of
Invoice / dispatch, whichever is earlier (“Initial Warranty Period”) on all parts except front grill
& plastic parts and, thereafter 4 years additional warranty (**) on the compressor.
