Description
SPECIFICATIONS
| Power Source | Phase | Single phase | |
|---|---|---|---|
| Voltage | 230 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling |
6.0 (0.9 – 6.7) kW |
|
| Heating |
7.0 (0.9 – 8.0) kW |
||
| Input Power | Cooling | 1.710 kW | |
| Heating | 1.820 kW | ||
| EER | Cooling | 3.51 W/W | |
| COP | Heating | 3.85 W/W | |
| Pdesign | Cooling | 6.0 kW | |
| Heating (-10°C) | 4.8 kW | ||
| SEER | Cooling | 7.00 W/W | |
| SCOP | Heating (Average) | 4.40 W/W | |
| Energy Efficiency Class | Cooling | A++ | |
| Heating (Average) | A+ | ||
| Max. Operating Current | Cooling | 12.60 A | |
| Heating | 12.60 A | ||
| Annual Energy Consumption | Cooling | 300 kWh/a | |
| Heating | 1527 kWh/a | ||
| Moisture Removal | 2.20 l/h | ||
| Sound Pressure Level*2 | Indoor (Cooling) | High | 33 dB(A) |
| Middle | 32 dB(A) | ||
| Low | 31 dB(A) | ||
| Quiet | 28 dB(A) | ||
| Indoor (Heating) | High | 33 dB(A) | |
| Middle | 32 dB(A) | ||
| Low | 31 dB(A) | ||
| Quiet | 28 dB(A) | ||
| Sound Pressure Level*2 | Outdoor (Cooling) | High | 51 dB(A) |
| Outdoor (Heating) | High | 51 dB(A) | |
| Sound Power Level | Indoor (Cooling) | High | 49 dB(A) |
| Indoor (Heating) | High | 49 dB(A) | |
| Outdoor (Cooling) | High | 63 dB(A) | |
| Outdoor (Heating) | High | 63 dB(A) | |
| Airflow Rate | Indoor (Cooling) | High | 1050 m³/h |
| Outdoor (Cooling) | High | 2240 m³/h | |
| Net Dimensions Indoor |
Height | 246 mm | |
| Width | 840 mm | ||
| Depth | 840 mm | ||
| Net Dimensions Outdoor |
Height | 632 mm | |
| Width | 799 mm | ||
| Depth | 290 mm | ||
| Net Weight | Indoor | 23.0 kg | |
| Outdoor | 38.0 kg | ||
| Connection Pipe Diameter | Liquid | φ6.35 mm | |
| Gas | φ12.7 mm | ||
| Drain Hose Diameter | φ25(I.D.), φ32(O.D.) mm | ||
| Max. Pipe Length (Pre Charge) |
30.0 (20.0) m |
||
| Max. Height Difference | 25 m | ||
| Operation Range | Cooling | -15 to 46 °C DB | |
| Heating | -15 to 24 °C DB | ||
| Refrigerant | Type | R32 | |
| Global Warming Potential | 675 | ||
| Charge |
1250 g (0.844 CO2eq–T) |
||

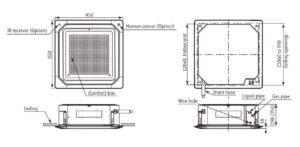

Dimensions
Indoor Unit :
