Description
MINI SPECIFICATIONS
- Capacity (TR): 0.6, 0.8, 1.02, 1.28, 1.59, 2.02, 2.27, 2.56, 3.18, 3.98 & 4.55
- Air Flow: 1000 to 2100 CMH
- Noise Level (L): 25 to 36 dB(A)
- Unit Dimension (W/D/H) mm: 840/840/180 to 840/840/288

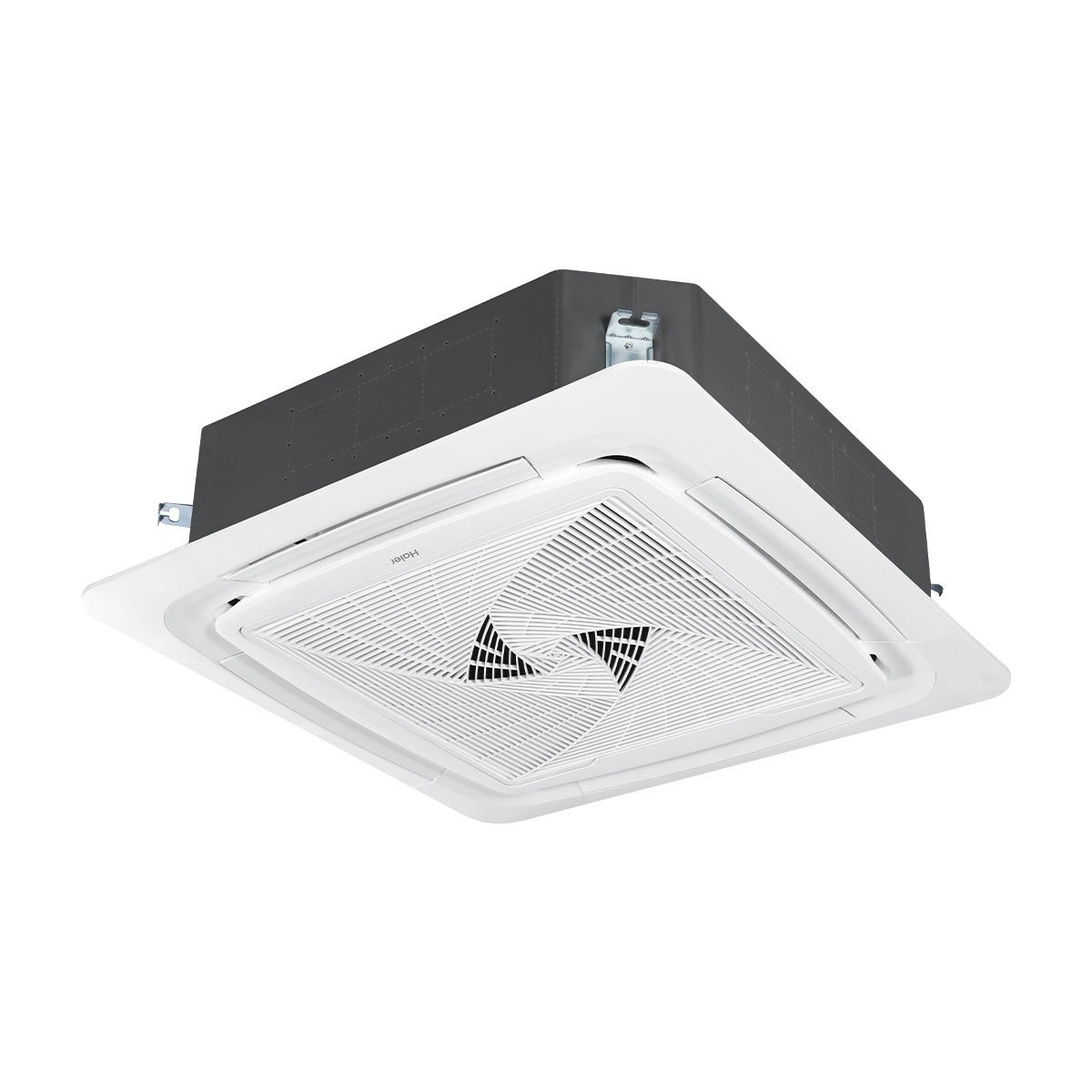

ROUND WAY AIR FLOW
The outlet adopts stepper motor design to realize the four-direction independent control system.
STYLISH APPEARANCE
Buy a traditional grille and a dynamic windmill for multi-choice and multi-enjoyment. Buy a dynamic windmill to enjoy a dynamic mood and relax in the wind.
ENERGY SAVING
The product adopts MOVE EYE module (optional), which can be controlled to realize the function of switch-on when people coming in and switch-off when people leaving.
BUILT-IN DRAIN PUMP
Equipped with 700mm drain pump, built-in float switch, convenient according to the actual working situation, Discharge condensate water from air conditioner.
QUIET OPERATION
High efficiency brush less DC fan motor, achieve step-less adjustment for speed, greatly reduce the noise of operation. Fan optimization design, using the principle of fluid mechanics, referring to the design of aviation structure, so that the airflows peed distribution is uniform, reduce the airflow resistance, so as to reduce noise, to achieve quiet operation.
SPECIFICATION
| Property | Value |
|---|---|
| Capacity | 4.55 |
| Product Segment | MRV Indoor |
| Price | 65000 |
| Technology | Inverter AC |
| Cooling Capacity (kW) | 16 |
| Heating Capacity (kW) | 18 |
| Cooling Capacity (KBtu/hr.) | 54.6 |
| Heating Capacity (KBtu/hr.) | 61.2 |
| Power Supply | 1-Ph/220~240V/50Hz |
| Air Flow (m3/hr.) | 1000 to 2100 CMH |
| Sound Pressure Level (H) – Cooling | 25 to 36 dB(A) |
| External Dimension (W/D/H) – mm | 840/840/180 to 840/840/288 |
| Net Weight – Kg | 39.5 |
| Piping Connections – Liquid | 9.52 |
| Piping Connections – Gas | 15.88 |
