Description

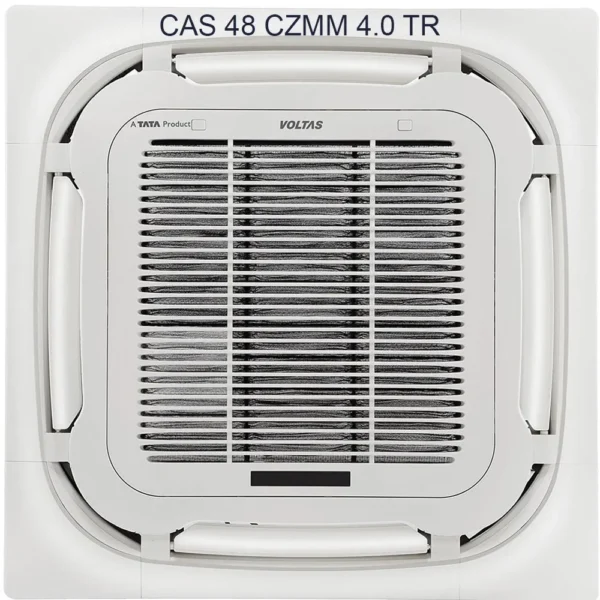

DC INVERTER CASSETTE AC
8 WAY AIR FLOW GRILL DESIGN*
Unique grill design to ensure uniform cooling in the room.
POWER SAVINGS
The inverter compressor gives you high cooling performance with low power consumption.
HIGH EFFICIENCY
Specially developed with BLDC rotary compressor and a precise inverter for performance.
TECHNICAL SPECIFICATION OF DC INVERTER CASSETTE AC
| Technical Details – Cassettes & Tower AC | |||||
|---|---|---|---|---|---|
| 1.5 TON CASSETTE TYPE | 2.0 TON CASSETTE TYPE | 3.0 TON CASSETTE TYPE | Voltas CAS 48VH CZA INVERTER AC | ||
| Description Of Details | Units | Voltas | Voltas | Voltas | Voltas |
| Rated Capacity | Actual Tonnage | 1.5 | 2 | 3 | 4 |
| Star Rating | BEE Only | 3 | 3 | NA | NA |
| ISEER | As Per BEE | 3.7 | 3.7 | NA | NA |
| Cooling Capacity | Btu/Hr. | 18000 | 24000 | 36000 | 48000 |
| Watts/Hr | 5100 | 7000 | 10500 | 14000 | |
| Heating Capacity | Watts/Hr | 5100 | 7600 | 38000 | 50000 |
| Power Consumption | Watts/Hr | 1800 | 2400 | 3500 | 4950 |
| Amps/Hr | 7.9 | 10.7 | 15 | 7.76 | |
| Power Supply | Phase | 1 | 1 | 1 | 3 |
| IDU Motor | DC/AC | DC | DC | DC | DC |
| CFM – P.Hr | H/L/M/Q | 412/312/353 | 765/559/618 | 1059/794/912 | 1147/882/1029 |
| IDU Dimensions | Height MM | 260 | 250 | 290 | 290 |
| Length | MM | 570 | 835 | 835 | 835 |
| Width | MM | 570 | 835 | 835 | 835 |
| Weight | Kg | 17 | 24 | 26.5 | 26.5 |
| Anticorrosion Coil | Y/N | Yes | Yes | Yes | Yes |
| Compressor Details | |||||
| Compressor Type | Rotary/Scroll | Rotary | Rotary | Rotary BLDC | Rotary BLDC |
| Compressors | Nos. | 1 | 1 | 1 | 1 |
| Refrigerant Type | Name of Refrigerant | R410A | R410A | R410A | R410A |
| ODU Details | |||||
| ODU Motor & Nos. | DC/AC & Nos. | 1 | 1 | – | – |
| Height | MM | 530 | 670 | 805 | 1366 |
| Width | MM | 800 | 890 | 970 | 940 |
| Depth | MM | 286 | 320 | 395 | 368 |
| Weight | Kg | 40 | 53 | 72.5 | 108 |
| Anticorrosion Coil | Y/N | Yes | Yes | Yes | Yes |
